Portable Handheld Infrared Thermal Imaging Camera High Sensitive Sensor HD Color Screen Real-time Responses Precise Lader Point

Features:

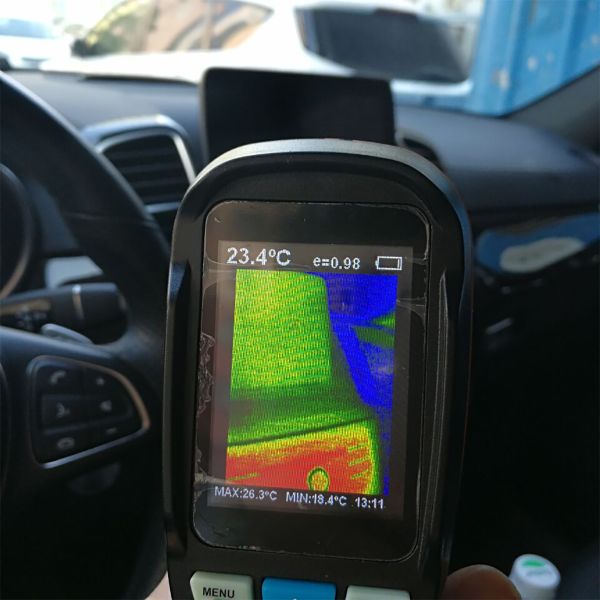

HT-04 is a Infrared camera that integrates surface temperature measurement and real-time thermal image.
The potential problems may be displayed on color display screen clearly.
This is helpful for users to locate the measurement cursor of the central point quickly and measure the temperature.
Both thermal images and full vision images can be stored in the detachable memory card.
The image may be called or stored in PC to generate a report and print.

Description:
The adjustable radiation coefficient increases the measurement accuracy of half reflection surface.
The thermal point and cold point temperature mark may guide the users to the area with highest or lowest temperature of thermal image.
The selectable color palette.

Specifications:
Model: HT-04
Material: Plastic
Color: black
Size: 215 * 90 * 55mm / 8.5 * 3.5 * 2.2in
Display screen: 2.4 inch TFT HD full-color screen
Infrared image resolution: 220x160
Total pixel: 35200
Temperature measurement range: -20℃ to +300℃ (-4℉ to 572℉)
Measurement precision: ±2.5℃ or ±2.5%
Wavelength coverage: 8-14um
Field angle/Shortest focus length: 27°x35°/0.5m
Emissivity: Adjustable from 0.1 to 1.0
Focus mode: Fixed
Color palette: Rainbow, iron oxide red, cold color, black & white, white & black
Image storage: SD card (4G)
Image format: JPG
Setting control: Unit adjustment of localization/ language/ date time version/ automatic power off
Battery type: No.5 AA battery * 4 (Not Included)
Battery service life: 2 hours
Power-off time: Selectable: 5 minutes/20 minutes/not power off automatically
Vibration resistance: 2G, IEC, 60068-2-6
Anti-dropping: 2M
Working temperature: 0℃ to 50℃
Storage temperature: -40℃ to 80℃
Humidity: <85RH

Package included:
1 x Thermal Imaging Camera
1 x USB Cable
1 x Carrying Bag
1 x Bag Strap
1 x Instruction Manual
