Digital Infrared Pyrometer MS1650

Ask Lasest Price
Brand Name :	MASUR
Certification :	CE,ROHS
Model Number :	MS1150
Delivery Time :	7-25 DAYS
Payment Terms :	T/T,Western Union
Supply Ability :	5000pieces/month

Add to Cart

Product Details
Company Profile

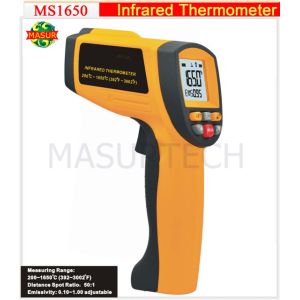

Digital Infrared Pyrometer MS1650

Portable Digital Infrared Thermometer - MS1650

A. Introduction

This infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous of hard-to-reach objects without contact safely and quickly.

This unit consist of Optics, Temperature sensor signal amplifier, processing circuit and LCD display. The optics collected the infrared energy emitted by object and focus onto the sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

B,Application

Heat ventilation air-conditioning and refrigeration
Automotive industry
Electrical & power voltage/current inspection field
Water treatment and water quality inspection
Environmental monitoring
Marine and weather
Gas industry
Food processing industry

C. Functions:

1. Celsius / Fahrenheit switchable

2. Equipped with a laser for aiming

3. Temperature hold

4. LCD backlight

5. 20 seconds auto power off

6. Light weight and easy operation

D. Specification

Temperature Range	200~1650°C (392~3002°F)
Accuracy	200°C(392°F)~ 450°C(842°F): ±2°C or ±2%
	450°C(842°F)~ 1100°C(2012°F): ±3°C or ±3%
	1100°C(2012°F)~ 1650°C(3002°F): ±4°C or ±3%
	Whichever is bigger
Resolution	0.1°C or 0.1°F
Repeatability	1% of reading or 1 °C
Response time	500 mSec, 95% response
Spectral response	900~1700 nm
Emissivity	0.1 to 1.00 adjustable (pre-set 0.95)
Distance to Spot size	50:1
Operating Temperature	0°C~40°C(32°F~104°F)
Relative Humidity	10~80% RH non-condensing
Storage Temperature	-20~60°C(-4°F~140°F)<85%, without battery
Power	9V Alkaline battery or 9V 500mA DC IN
Typical battery life	Non-laser mode: 22 hrs;
Typical battery life	Laser mode: 12 hrs
Weight	275.4g without battery
Dimension	*20015559mm*

E. Operating instructions

a. Operating the unit

b. Locating a hot spot

c. Distance to spot size

When take measurement, pay attention to the Distance to spot size. As the Distance (D) from the target surface increases, the spot size (S) of the area measured by the unit becomes larger.

*****This unit is equipped with a laser, which is used for aiming.

Make sure the target is larger than the unit's spot size. The smaller the target the closer measure distance. When accuracy is critical, make sure the target is at least twice as large as the spot sise.

d. About the Emissivity:

Most organic materials and painted or oxidized surfaces have an emissivity of 0.95 (pre-set in the unit). Inaccurate readings will result from measuring shiny of polished metal surfaces. To compensate, cover the target surface with masking tape or flat black paint. Measure the tape or painted surface when the tape of painted reach the same temperature as the material underneath.

F. Packing information

Packing: Gift box + PP box

Standard Quantity Per Carton: 12pcs

Standard Carton Sise: 53x50.6x35CM
