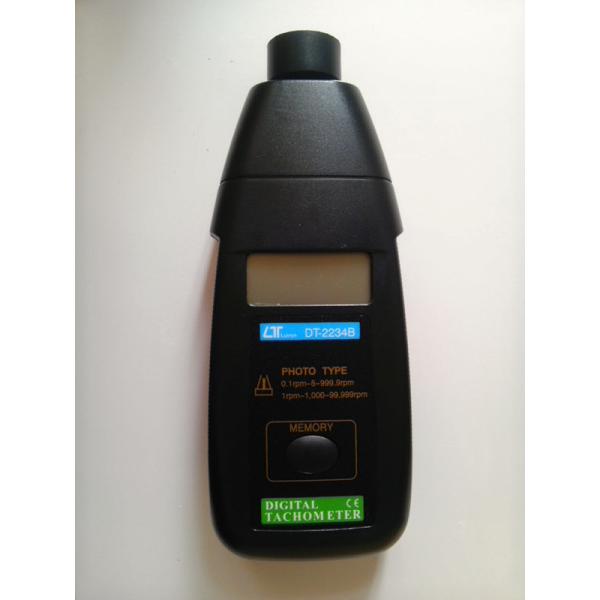

Digital Photoelectric Tachometer Sensor - DT-2234B

Application
Wide measuring range & high resolution,with 99 groups of data store
Digital display gives exact RPM with no guessing or errors
The last value/max, value/rain, value will be automatically stored in memory and can be displayed by turn anytime
The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assure maintenance free performance for many
years. The housing has been carefully shaped to fit comfortably in either hand.

Technology features
Display:5 digits, 18mm (0.6-inch LCD screen)
Test Range:2.5 to 99,999 RPM (r/min)
Resolution:0.1 RPM (2.5 to 999.9 RPM)
1 RPM (over 1,00O RPM)
Accuracy:(0.05%+1 digit)
Sampling Time:0.8 sec.(over 60 RPM)
Test Range Select:Automatic
Memory:Last value, Max. Value,Min. Value ,can store 99s date
Detecting Distance:50 to 500 mm

Description
Time Base: 6MHz Quartz crystal
Sampling time:0.5sec(over 120 RPM)
Range select:auto range
Circuit:Exclusive one-chip of microcomputer LSI circuit.
Battery: 4 * 1.5V AA
Power Consumption:Approx. 35mA (LED)
Approx. 30mA (Laser)
Operation Temp.:0 to 50°C(32 to 122°F)
Size:160 x 72 x 37 mm
Weight:204g (including battery)
Accessories:4 * 1.5V AA Battery,3 x Reflecting tape marks,1 x User manual

Packing details:
gift box
carton:35 x 34 x 29 CM
Packing quantity :30 pcs/ctn
G.W.:10.5 kgs N.W.:9.5 kgs
